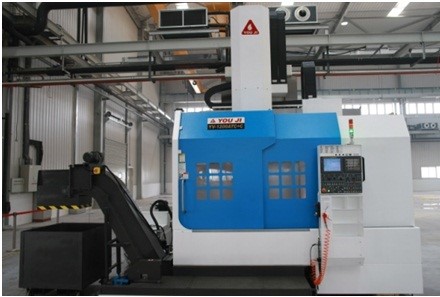

CNC Vertical Lathe YV-1200ATC+C

Author：天津祥嘉流体控制系统有限公司 Public Time：2014-03-20 Views：1861

Mechanical ability capacity
disk surface diameter: ø 1250mm
maximum turning diameter: ø 1600mm
maximum cutting diameter: ø 1350mm
maximum cutting height: 1200mm
maximum machining part weight: 5000kg
amount of movement
left and right (X)axle travel: 935mm
Elevation (Z)axle travel: 900mm
crossbeam elevation travel: 700mm
Spindle
Spindle speed(low speed ): 2~108rpm
Spindle speed(high speed ): 108~350rpm
spindle maximum torque force: 8,200N.m(836kgf-m)
feed speed
X axis fast feed: 12m/min
Z axis fast feed: 10m/min
cutting feed: 1~2000mm/min
manual feed: 0~10m/min
