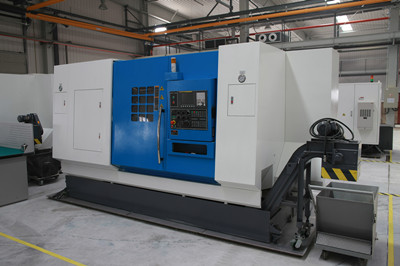

CNC Horizontal Lathe FBL360/FBL360 MC

Author：天津祥嘉流体控制系统有限公司 Public Time：2014-03-20 Views：1971

Features
One-piece construction with slant back, owns high rigidity and reliability.
Gang- type tool selection, which shorts tools changing time, and improve working efficiency.
Front moving coolant tray and rear/side chips conveyor make the footprint of the machine smaller
It is ideal for high speed cutting on materials like steel, cooper, aluminum and casting. The machining accuracy of the workpiece is high.
User-friendly operation design.

Mechanical Specifications
Swing Over Bed: Ø770mm (30.3")
Swing over Cover: Ø550mm (21.7")
Max. Cutting Diameter: Ø570mm (22.4")
Cutting Diameter: Ø305mm (12")
Distance Between Centers: Ø1020mm (40.2")
Spindle type: A2-8
